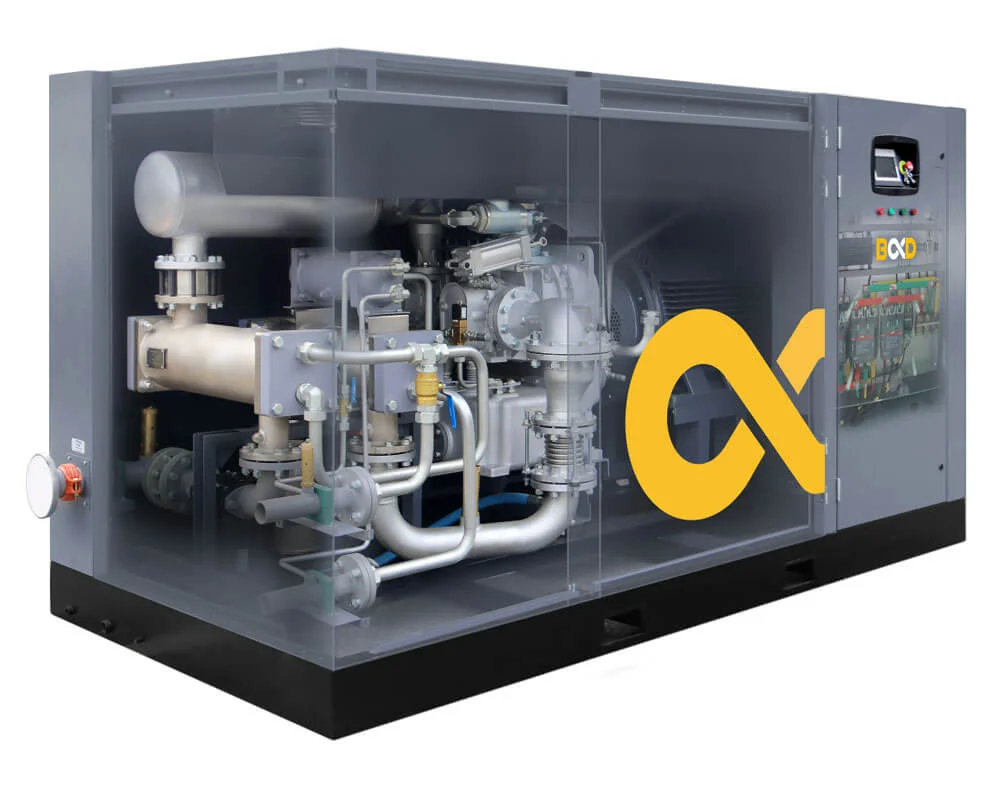

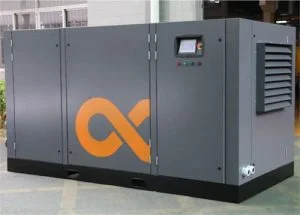

Oil-Free Dry Screw Compressor 55-315 kW (70-400 hp)
DM & DL Series
B&D Manufacturing Single-Stage & Two-stage Dry Compressors To Provides Class 0 Oil-Free Air and with Maximum Energy Efficiency.
Class 0 Oil-Free Air
IR Dry Screw Airend
Long Lifespan

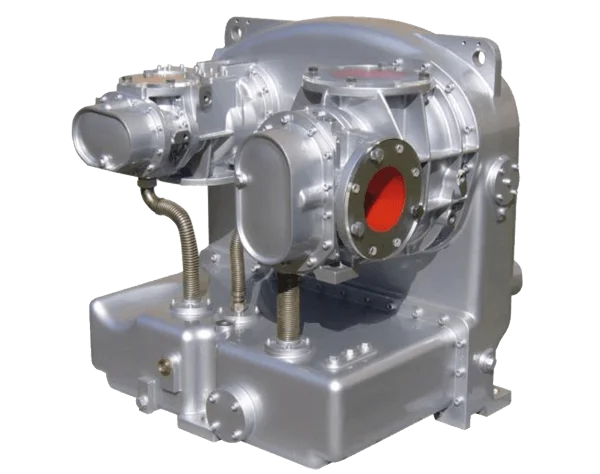

Ingersoll Rand Oil-Free Dry Screw Airend
- B&D and SKF jointly develop bearings to improve stability
- Compressed rotor protected by the latest technology coating
- AGMA Q12/DIN 6 Gear with Infinite Class Life
- Rotor design lifespan 100,000 hours
Ingersoll Rand Oil-Free Dry Screw Airend
- Drive, compression, and cooling separation section design
- Separate cold and hot zone
- All-In-One Design Airend

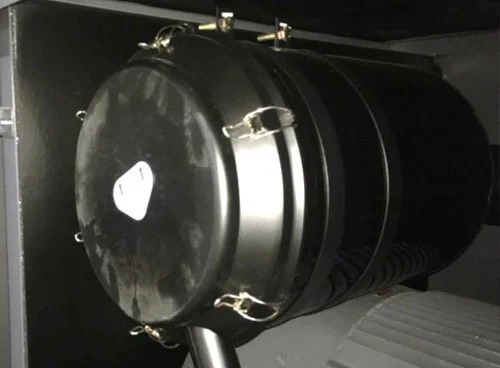

1 μm 98% Inlet Air Filter
The Refined Design of Pipeline Silencer
Add Your Heading Text Here

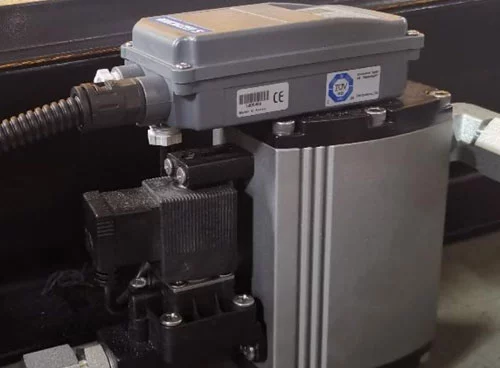

Electronic Trap Valve with Alarm
DM Series
Dry Screw Oil-free Air Compressor
| Model | Power(kw | FAD(m³/min |  Dimension | Weight | ||||
| 7.5bar | 8.5bar | 10bar | L(mm) | Wmm) | H(mm) | kg | ||
| DM55 | 55 | 10 | 9 | 8 | 3060 | 1500 | 1750 | 2350 |
| DM75 | 75 | 13.1 | 12.2 | 11.2 | 3060 | 1500 | 1750 | 2550 |
| DM90 | 90 | / | 13.2 | 12.1 | 3060 | 1500 | 1750 | 2650 |
| DM110 | 110 | 20 | 18.5 | 16.2 | 3260 | 1590 | 1800 | 3400 |
| DM132 | 132 | 23.3 | 22 | 19.7 | 3260 | 1590 | 1800 | 3500 |
| DM160 | 160 | / | 26.5 | 23.2 | 3260 | 1590 | 1800 | 3700 |
| DM200 | 200 | 35.2 | 32.8 | 29.5 | 3950 | 1850 | 2100 | 5700 |
| DM250 | 250 | 46 | 42 | 37.6 | 3950 | 1850 | 2100 | 5800 |
| DM315 | 315 | / | 50.2 | 45.8 | 3950 | 1850 | 2100 | 6000 |
