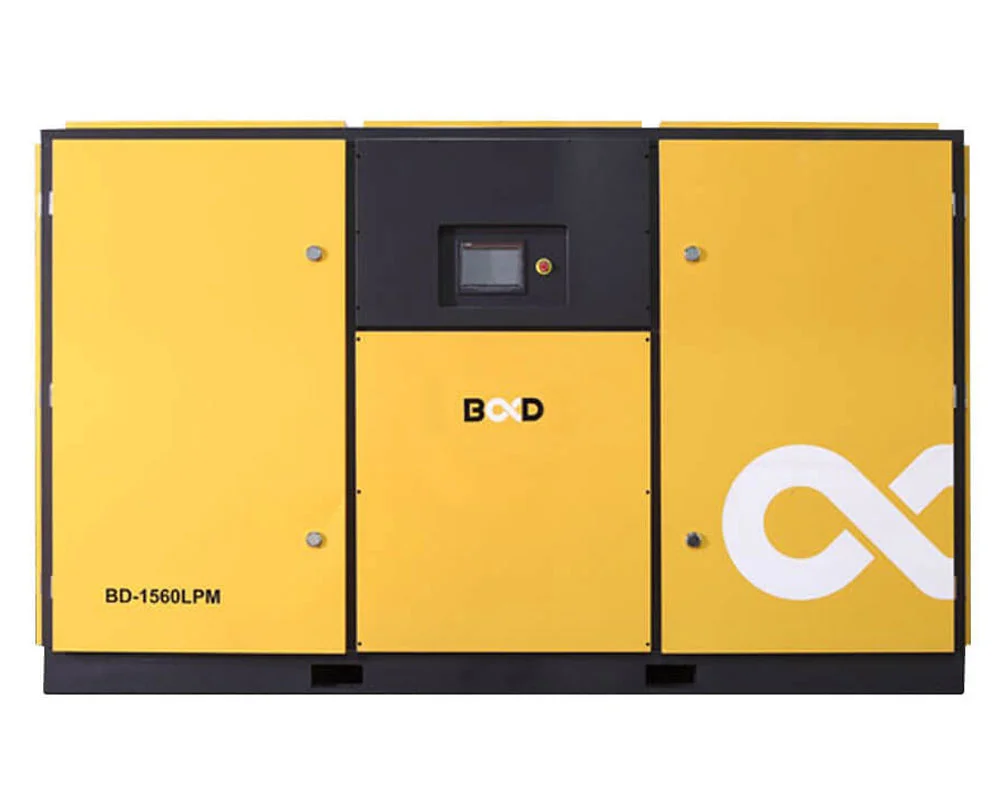

Low-Pressure Screw Compressor (3 to 5 Bar)
LPM Series
Low rotating speed while keeping up a good free airflow volume for making sure no energy consumption waste in long lifespan.
Permanent Magnet
Energy-Saving
Lower RPM

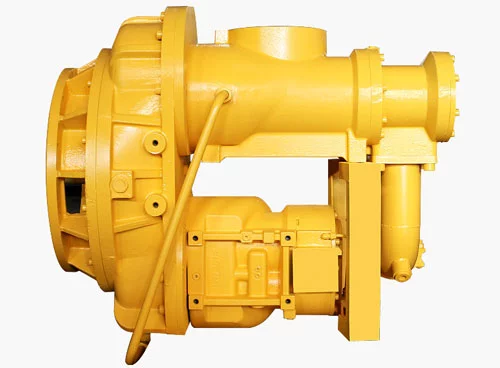

Large Airend with PM Motor
Large volume output with small permanent magnet motor.

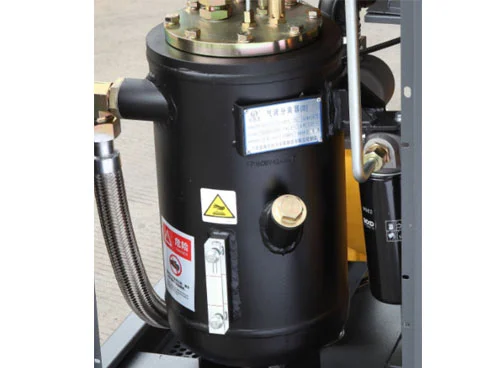

Oil Tank
High-quality high-pressure and high-temperature resistant oil tank.

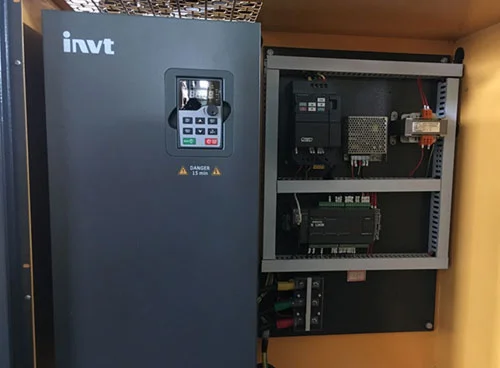

Inverter
Use INVT inverter to protect machine, become energy-saving.

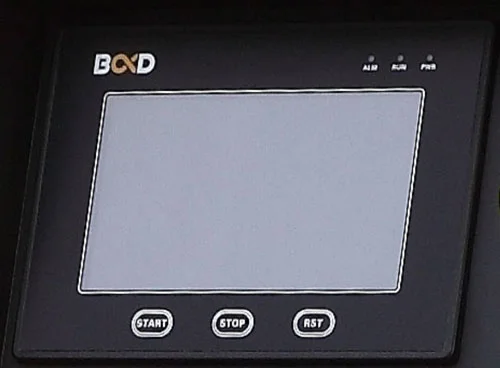

Smart Control System
The system has remote monitoring and self-checking system.
LPM Series
3 to 5 Bar Rotary Screw Air Compressor
| Model | BD-390LPM/3 | BD-390LPM/5 | BD-600LPM/3 | BD-600LPM/5 | BD-750LPM/3 | BD-750LPM/5 | BD-1100LPM/3 | BD-1100PM/5 | BD-1560LPM/3 | BD-1560LPM/5 |
| Power(kw) | 37 | 45 | 55 | 75 | 75 | 90 | 110 | 132 | 132 | 160 |
| Pressure(bar) | 3 | 5 | 3 | 5 | 3 | 5 | 3 | 5 | 3 | 5 |
| FAD(m³/min) | 11.5 | 11.5 | 18.5 | 18.5 | 25.5 | 22.5 | 35.7 | 31.2 | 44.2 | 40.5 |
| Ambient temp | -5~+45℃ | |||||||||
| Cooling Way | Air Cooling or Water Cooling | |||||||||
| Discharte temp | air cooling(ambient temperature±10℃) water cooling(＜40℃) | |||||||||
| Electricity | 220v/380v/415v/460v/50hz/60hz | |||||||||
| Starting Method | Inverter Start | |||||||||
| Drive way | Direct Drive | |||||||||
| Lubricant(Litre) | 72 | 72 | 120 | 120 | 120 | 120 | 150 | 150 | 208 | 208 |
| Noise(dBA) | 66±2 | 68±2 | 68±2 | 68±2 | 75±2 | 75±2 | 77±2 | 77±2 | 78±2 | 78±2 |
| Length(mm) | 1250 | 1250 | 1450 | 1450 | 1600 | 1600 | 1800 | 1900 | 2200 | 2200 |
| Width(mm) | 800 | 800 | 900 | 900 | 1150 | 1150 | 1250 | 1250 | 1550 | 1550 |
| Height(mm) | 1000 | 1000 | 1250 | 1250 | 1370 | 1370 | 1550 | 1650 | 1800 | 1800 |
| Weight(kg) | 400 | 450 | 580 | 610 | 900 | 930 | 1080 | 1280 | 2880 | 3080 |
| Outlet Pipe Dia(inch) | G1¼” | G1¼” | G1½” | G1½” | G2″ | G2″ | G2″ | G2″ | DN80 | DN80 |
